UL21305 Charging Infrastructure LSZH Cable 60C 300V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

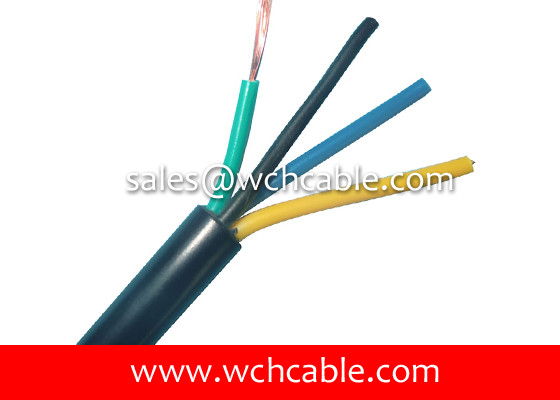

UL21305 Charging Infrastructure LSZH Cable 60C 300V

Brand Name : WCH Cable

Model Number : UL21305

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL21305

Application : Charging infrastructure

Rated Temperature : 60°C

Conductor Type : High purity copper wires

Rated Voltage : 300V

Manufacturer : WCH Cable Industrial Co., Ltd.

Jacket Type : FRPE, FR-PE

Jacket Material : Flame Retardant Polyethylene

Contact Now

UL21305 Charging Infrastructure LSZH Cable 60C 300V

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE

Rated Temperature: 60C

Rated Voltage: 300V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL758.

Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21305 2C 30 7/0.100 0.23 0.80 0.41 3.40 381.00
2C 28 7/0.127 0.23 0.90 0.41 3.70 239.00
2C 26 7/0.16 0.23 1.00 0.41 3.80 150.00
2C 24 11/0.16 0.23 1.10 0.41 4.00 94.20
2C 22 17/0.16 0.23 1.30 0.41 4.40 59.40
2C 20 21/0.178 0.23 1.50 0.41 4.80 36.70
2C 18 34/0.178 0.23 1.80 0.41 5.40 23.20
2C 16 26/0.25 0.23 2.00 0.41 7.20 14.60
3C 30 7/0.100 0.23 0.80 0.41 4.80 381.00
3C 28 7/0.127 0.23 0.90 0.41 5.00 239.00
3C 26 7/0.16 0.23 1.00 0.41 5.20 150.00
3C 24 11/0.16 0.23 1.10 0.41 5.40 94.20
3C 22 17/0.16 0.23 1.30 0.41 5.60 59.40
3C 20 21/0.178 0.23 1.50 0.41 6.30 36.70
3C 18 34/0.178 0.23 1.80 0.41 6.90 23.20
4C 30 7/0.100 0.23 0.80 0.41 5.00 381.00
4C 28 7/0.127 0.23 0.90 0.41 5.20 239.00
4C 26 7/0.16 0.23 1.00 0.41 5.50 150.00
4C 24 11/0.16 0.23 1.10 0.41 5.90 94.20
4C 22 17/0.16 0.23 1.30 0.41 6.20 59.40
4C 20 21/0.178 0.23 1.50 0.41 6.70 36.70
5C 30 7/0.100 0.23 0.80 0.41 5.20 381.00
5C 28 7/0.127 0.23 0.90 0.41 5.40 239.00
5C 26 7/0.16 0.23 1.00 0.41 5.50 150.00
5C 24 11/0.16 0.23 1.10 0.41 5.90 94.20
5C 22 17/0.16 0.23 1.30 0.41 6.50 59.40
6C 30 7/0.100 0.23 0.80 0.41 5.40 381.00
6C 28 7/0.127 0.23 0.90 0.41 5.80 239.00
6C 26 7/0.16 0.23 1.00 0.41 6.20 150.00
6C 24 11/0.16 0.23 1.10 0.41 6.50 94.20
