UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

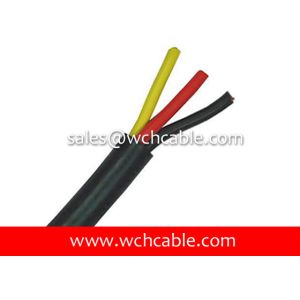

UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V

Brand Name : WCH Cable

Model Number : UL20968

Certification : UL, CUL, CSA, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.135 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 300,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Style Number : UL20968

Feature : Customized Manufacture

Rated Voltage : 300V

Conductor : Highly Pure Copper Strands

Rated Temperature : 60°C

Insulation : AWM Material

FR Grade : VW-1, FT1

Jacket : Polyurethane PUR

Contact Now

UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V

Conductor material: high purity copper wires

Conductor size: 33AWG to 18AWG, stranded or solid, optional.

Insulation material: Polypropylene PP, or Polyvinyl Chloride PVC

Jacket material: Quality Polyurethane PUR.

Parameters:

Style Number Conductor Quantity Conductor Structure Insulation
Thickness		 Insulation Diameter Screen Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20968 2C 30 7/0.100 0.23 0.80 ≥65 0.55 3.20 381.00
2C 28 7/0.127 0.23 0.90 ≥65 0.55 3.40 239.00
2C 26 7/0.16 0.23 1.00 ≥65 0.55 3.60 150.00
2C 24 11/0.16 0.23 1.10 ≥65 0.55 3.80 94.20
2C 22 17/0.16 0.23 1.30 ≥65 0.55 4.20 59.40
2C 20 21/0.178 0.23 1.50 ≥65 0.55 4.60 36.70
2C 18 34/0.178 0.23 1.80 ≥65 0.55 5.20 23.20
2C 16 26/0.25 0.23 2.10 ≥65 0.55 5.80 14.60
3C 30 7/0.100 0.23 0.80 ≥65 0.55 3.40 381.00
3C 28 7/0.127 0.23 0.90 ≥65 0.55 3.50 239.00
3C 26 7/0.16 0.23 1.00 ≥65 0.55 3.80 150.00
3C 24 11/0.16 0.23 1.10 ≥65 0.55 4.00 94.20
3C 22 17/0.16 0.23 1.30 ≥65 0.55 4.40 59.40
3C 20 21/0.178 0.23 1.50 ≥65 0.55 4.80 36.70
3C 18 34/0.178 0.23 1.80 ≥65 0.55 5.50 23.20
4C 30 7/0.100 0.23 0.80 ≥65 0.55 4.80 381.00
4C 28 7/0.127 0.23 0.90 ≥65 0.55 5.10 239.00
4C 26 7/0.16 0.23 1.00 ≥65 0.55 5.30 150.00
4C 24 11/0.16 0.23 1.10 ≥65 0.55 5.50 94.20
4C 22 17/0.16 0.23 1.30 ≥65 0.55 6.00 59.40
4C 20 21/0.178 0.23 1.50 ≥65 0.55 6.50 36.70
5C 30 7/0.100 0.23 0.80 ≥65 0.55 5.00 381.00
5C 28 7/0.127 0.23 0.90 ≥65 0.55 5.30 239.00
5C 26 7/0.16 0.23 1.00 ≥65 0.55 5.60 150.00
5C 24 11/0.16 0.23 1.10 ≥65 0.55 5.80 94.20
5C 22 17/0.16 0.23 1.30 ≥65 0.55 6.40 59.40
6C 30 7/0.100 0.23 0.80 ≥65 0.55 5.30 381.00
6C 28 7/0.127 0.23 0.90 ≥65 0.55 5.60 239.00
6C 26 7/0.16 0.23 1.00 ≥65 0.55 5.90 150.00
6C 24 11/0.16 0.23 1.10 ≥65 0.55 6.20 94.20

UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V

Style Number: UL20968
Rated Grade:

60 deg C, 300 Vac, Cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 20 mils (Ref.)
Minimum thickness: 16 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal Wiring of Subscriber Sets.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, 300V Cable, Subscriber Cable, UL20968 Cable

UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V

Tag: customize cable, customize pur cable


Wholesale UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V from china suppliers

UL20968 Customized Manufacturing Cable PUR Jacket Rated 60C 300V Images
